This is just an Agent project for practice. I will integrate it into one of my websites as a full-stack AI web application layer, but I may also design it to be an Agent module that can run in a container and communicate with the outside world via APIs, making it easy to integrate and deploy.

I built this Agent project and my web application completely from scratch. They may not be very user-friendly, but I can design them according to my own preferences, which gives me a great sense of satisfaction. I will probably design only some simple tool calls and try to implement complete session management (actually, I think the Agent loop will become very simple in the future because models are improving rapidly, though I can't figure out how to solve the hallucination problem; for now, context engineering still seems applicable in many scenarios). The components will be a cache layer, a storage layer, and a retrieval layer (approximately that concept). I'll implement them using Redis, PostgreSQL, and embedding vectors respectively. This is a good opportunity to learn about Redis and PostgreSQL features: Redis stores data in RAM and is fast for key-based retrieval, while PostgreSQL stores data on disk, so it's slower but provides persistent storage. I'll also learn how sessions are stored in tables, what the schema looks like, and that each session has a UUID. In short, I will try to create the best user experience (I have a people-pleasing personality).

The session management system is set up, adopting the mainstream dual-storage mode of session KV + vector database. PostgreSQL stores everything, Redis caches the last 10 messages to ease concurrent write pressure and speed up session message reads, and the vector database enables cross-session message retrieval (There are actually many design possibilities here. For example, an external knowledge base could be designed, such as some personal information of mine; or a tool description vector database could be used to match the most suitable tool to call. Here, we simply store some high-value content into the vector database, such as user preferences, decisions, personality, etc.).

It is the three-tier storage structure mentioned above. Actually, there isn't much data to store; there are only two tables in total: the sessions layer is fully stored in PostgreSQL, including uuid, user_id (an Auth mechanism will be needed later to store data and implement multi-user, multi-session functionality where each user manages their own sessions), messages, created_at, update_at, where messages are stored as JSON. Then there is the semantic layer, used to store semantic vectors. The table is the same, except it has an additional embedding vector. Later, an embedding method needs to be implemented to selectively convert segmented sentences into embedding vectors for storage (Semantic segmentation has many subtleties; multiple methods can be chosen based on the scenario. Also, for the Agent's vector database retrieval, it is generally designed as a tool_call, and tools are called when needed for querying). In short, Minimax and deepseek have already helped me build some parts, but I do have full control over all data fields, message storage methods, and the total of 4 APIs:

GET /api/sessions/{session_id} 用来拉取已有某个会话内容
POST /api/sessions/{session_id}/messages 用来发送消息
POST /api/session 用来创建会话
GET /api/users/{suer_id}/sessions 拉取某个用户的已有会话列表

I can also write some status checks or error codes for them to practice API specifications.

Later, I integrated a complete Agent conversation API. The backend calls the LLM API via HTTP requests, and the LLM decides whether to make tool calls (this is implemented by the LLM returning structured information to the Runtime, which reads the tool and parameters specified in the struct). The Agent executes the Runtime loop inside a container (the loop means executing a tool, returning the execution result to the LLM, which then thinks further and returns a message), ultimately obtaining a final answer (how to determine whether it's a final answer? There are several methods: 1. Let the LLM judge by itself; 2. Consider it the final answer when no more tool calls occur; 3. If the maximum step limit is exceeded, directly return the final answer). The Runtime splits the message and returns it, then renders it via SSE streaming in the frontend message window, roughly like that. The Agent-side tool_call, backend RAG library, Auth authentication and user management—all of these can be gradually integrated.

User Authentication

There are two mainstream approaches to integrating a RAG library. You can perform a retrieval before each reply and splice the retrieved results into the messages; alternatively, you can set up the RAG functionality as an Agent tool and let the LLM decide whether to call the RAG tool. The second method is more reasonable: it checks whether the current question needs cross-session retrieval or long-term memory, and then intentionally retrieves information from the knowledge base. The mainstream retrieval approach is usually vector recall + keyword/BM25 → rerank, and then the results are returned to the LLM. The RAG integration and retrieval method have already been designed in the Agent runtime, so how exactly should the RAG vector database be generated?

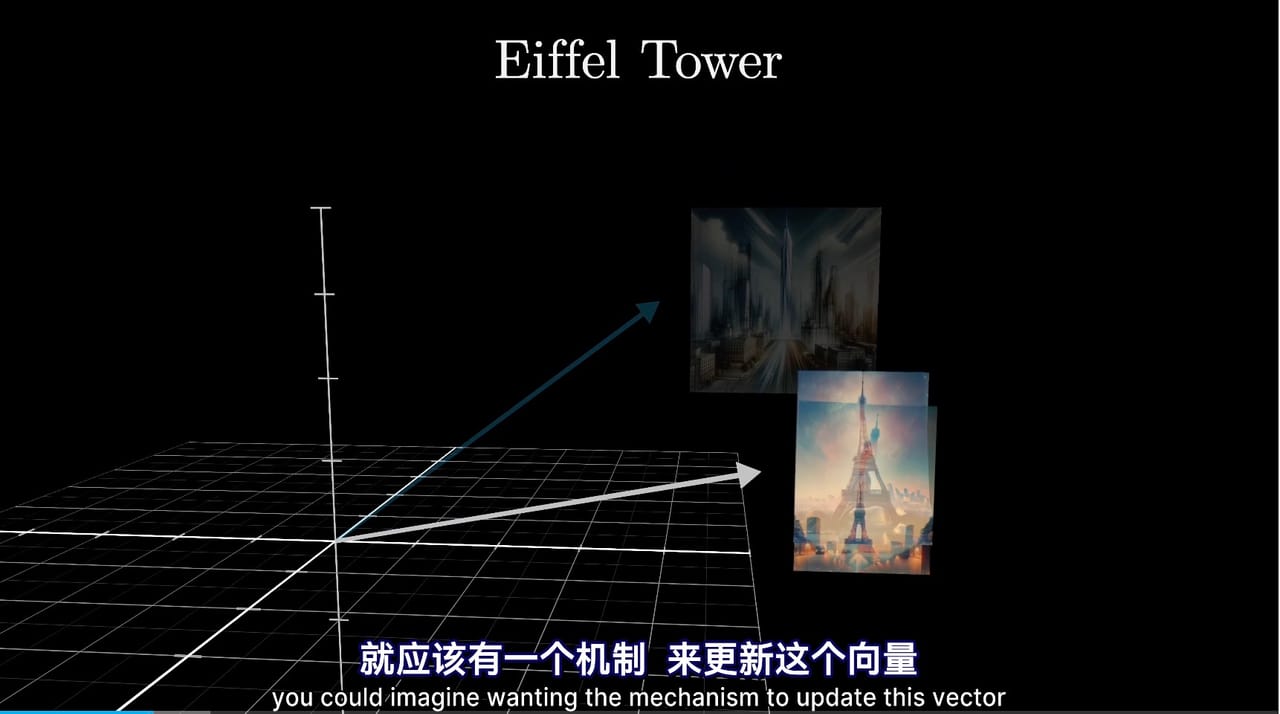

As I understand it, a RAG library is a collection of sentence information (or semantics) in a high-dimensional space, where each sentence is mapped to a vector. The model that maps them into vectors has been trained on a large amount of text (just like ChatGPT), and it clearly understands the relationships between different sentences (such as hearts and Alice, rings and love). These relationships are reflected in the distance between two sentence vectors in the high-dimensional space (imagine two objects in a three-dimensional coordinate system). So the retrieval process is, as we just mentioned, converting our query into a vector, calculating which vectors in the semantic space are closest to it—those are the 'memories' we want—then extracting and concatenating them and returning them to the LLM. This is what makes up a RAG library. As it happens, I also know that these sentences and words are composed of tokens, so how we reasonably select them and convert them into RAG vectors will naturally greatly affect the subsequent retrieval results (just like converting the sentence 'Oranges are the only fruit in the world' into a vector versus converting 'oranges,' 'world,' 'only,' and 'fruit' separately into vectors will lead to different retrieval results).

So how should we split paragraphs and convert them into RAG vectors (also converting them into tokens first)? I think splitting should take into account semantic completeness, structure, and the capabilities of the embedding model. There are two strategies we can choose from: the chunking strategy (splitting the entire article into different paragraphs) and the tokenizer strategy (splitting a paragraph into the smallest semantic units, involving compression and generalization).
